A well-drawn floor plan is more than just a sketch - it’s the blueprint of a vision. Whether you're building from scratch or reconfiguring a space, understanding architectural drawings is crucial to getting it right.
Architectural drawings form the foundation of every construction project. They bring together structure, function and flow through detailed plans that follow strict standards. But what exactly do these standards include? From line weights and annotations to drawing scales and symbol libraries, each element plays a vital role in communicating design intent clearly and professionally.
In this guide, we’ll break down the essentials we use here at Marraum and demystify the core standards that govern architectural drawings. Whether you’re a student, homeowner or design professional, this walkthrough will help you read and understand plans.
What are architectural drawings and why do they matter?
Architectural drawings are the language of the built environment. They communicate every aspect of a design to everyone involved - from planners and engineers to contractors and clients. Without them, a project would lack the clarity needed to progress smoothly from concept to completion. Drawings help ensure accuracy, compliance with regulations and alignment between teams. They’re also legally binding documents that form part of contracts and planning submissions.

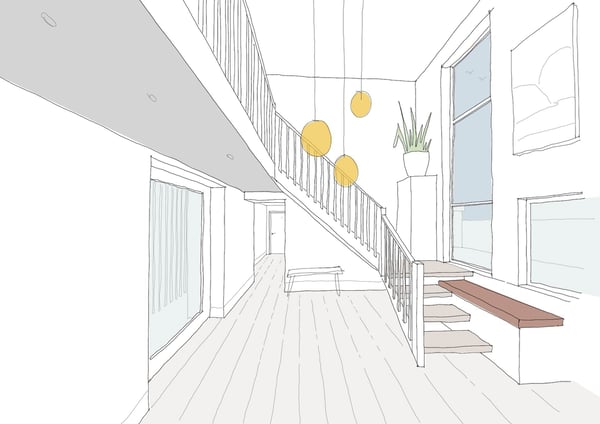

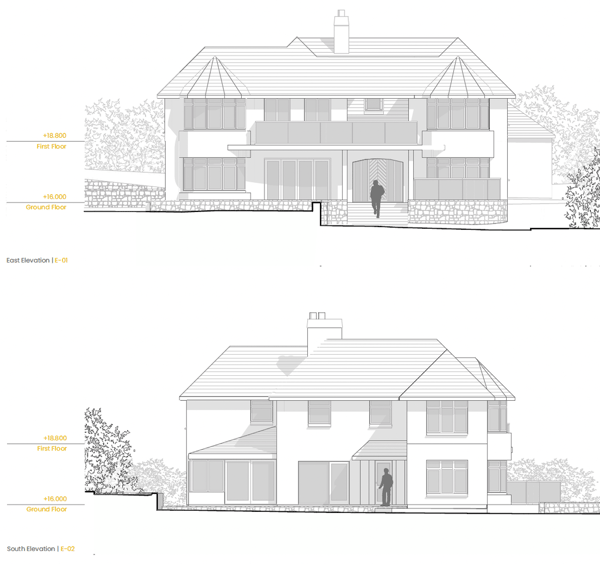

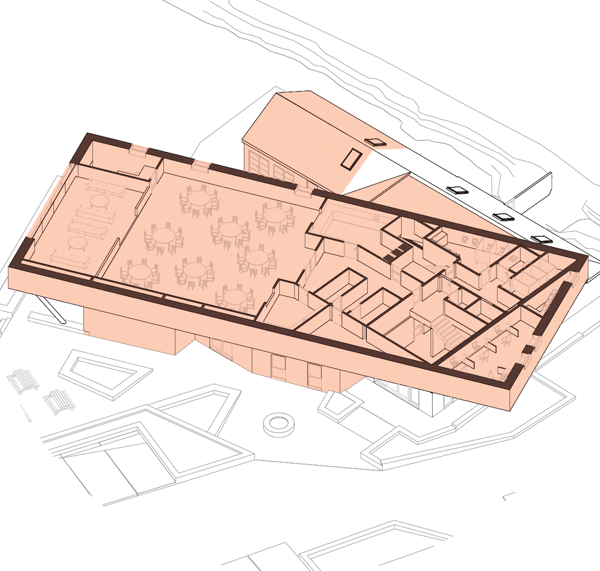

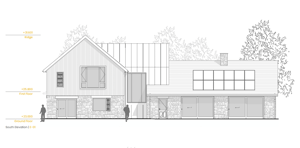

There are several types of architectural drawings, each offering a unique perspective. Floor plans provide a bird’s-eye view of a space, showing walls, fixtures and circulation routes. Elevations display the vertical face of a building, revealing façade treatments and external features. Sections slice through the structure to show internal relationships and levels. Together, these documents offer a complete picture of the building’s design, use and structure - with floor plans acting as the central reference point.
Essential elements of a professional floor plan
A high-quality floor plan is clear, accurate and easy to read. It includes all major architectural features such as walls, windows, doors, stairs and built-in furniture. Fixtures like toilets, basins, kitchen units and fireplaces should also be present to show how the space will function. The layout must show circulation paths and relationships between rooms to help visualise how people will move through the space.
In addition to showing layout, a professional plan should include a north arrow for orientation and a scale bar. Room names must be correctly labelled, and annotations should be used to clarify any special features or construction notes. Clarity is everything - a well-annotated plan reduces confusion on-site and helps clients understand the design with confidence.
Drawing standards: scales, line types and dimensions
In the UK, floor plans are typically drawn to standard scales such as 1:100 for general layout and 1:50 for more detailed interior views. Using the correct scale is vital for ensuring the drawing can be read accurately on screen or in print. A consistent use of scale also means plans can be easily compared and measured.
Line types and weights help convey different elements clearly. Thicker lines are used for structural walls, while thinner lines might indicate fittings or secondary details. Hatch patterns can show materials, finishes or areas to be removed. Dimensions must be clearly aligned, legible and placed outside the drawing where possible to avoid visual clutter. There should be a consistent system of dimensioning - from centreline to centreline or face to face - to avoid leaving measurements open to interpretation.
Symbols and conventions used in architectural drawings
Symbols are a visual shorthand that simplify complex ideas. Common symbols include variations for different types of doors (swinging, sliding, bifold), window openings, staircases and furniture. These should be standardised and drawn to scale to maintain accuracy and readability.
Technical services have their own iconography. Plumbing fixtures, light switches, sockets and data points are all marked with specific symbols. These are usually explained in a legend or key, often found in the title block or corner of the sheet. Consistency in symbol use helps everyone from consultants to contractors understand what’s intended, reducing the risk of misinterpretation during construction.
UK building regulation requirements for floor plans
Building regulations in the UK directly influence how floor plans are drawn. Minimum room sizes are defined for habitable spaces, particularly in new builds or conversions. For example, a single bedroom must be at least 7.5 square metres, with a minimum width of 2.15 metres. Plans must show these dimensions to demonstrate compliance.
Fire safety is another major concern. Floor plans need to clearly indicate escape routes, especially in multi-storey or shared residential buildings. Stair positions, fire doors and protected corridors must be represented accurately. Accessibility is also key - floor plans should demonstrate that doorways, turning circles and corridor widths allow for wheelchair use where applicable. These design considerations must be integrated from the start, not retrofitted later.
Digital tools and software for drawing floor plans
Today’s architectural drawings are rarely hand-drawn. Most professionals use digital tools to produce plans efficiently and accurately, such as AutoCAD, Revit or Archicad, which we use here at Marraum. CAD (Computer-Aided Design) and BIM (Building Information Modelling) platforms allow for 2D and 3D visualisation, as well as collaboration across teams. These tools also help streamline updates when design changes occur.
When sharing plans, exporting to PDF or printing to scale is essential. Line weights, hatches and annotations should appear clearly when printed or exported. Layers are also crucial - they let you manage different elements (such as furniture, structural walls or services) without cluttering the main drawing. Templates and naming conventions help maintain consistency across projects and improve file organisation for future reference.
Common mistakes to avoid in architectural drawings
Poor line weight management is one of the most common pitfalls. When all lines look the same, it becomes difficult to distinguish between structural, secondary and furniture elements. This lack of hierarchy can lead to miscommunication on-site and delays during construction.
Incorrect scaling and missing dimensions can also cause problems. If a drawing isn’t to scale or lacks key measurements, contractors may be forced to make assumptions - which can result in costly errors. Another frequent issue is overcrowding. A floor plan packed with too many notes or overlapping symbols quickly becomes unreadable. This can be avoided by using call-outs or separate detail drawings for complex areas, keeping the main plan clean and legible.
Architectural drawings aren’t just technical - they’re creative tools that shape the way spaces are used and experienced. By following the right drawing standards, floor plans will speak clearly to clients, contractors and planning officers alike.
Whether sketching initial ideas or finalising construction documents, mastering these standards can elevate architectural work and avoid costly mistakes.
At Marraum, we translate your vision into well-crafted architectural plans that balance design, functionality and compliance. If you’re planning a project and want clarity from the first sketch to the final drawing, get in touch with our team today.
